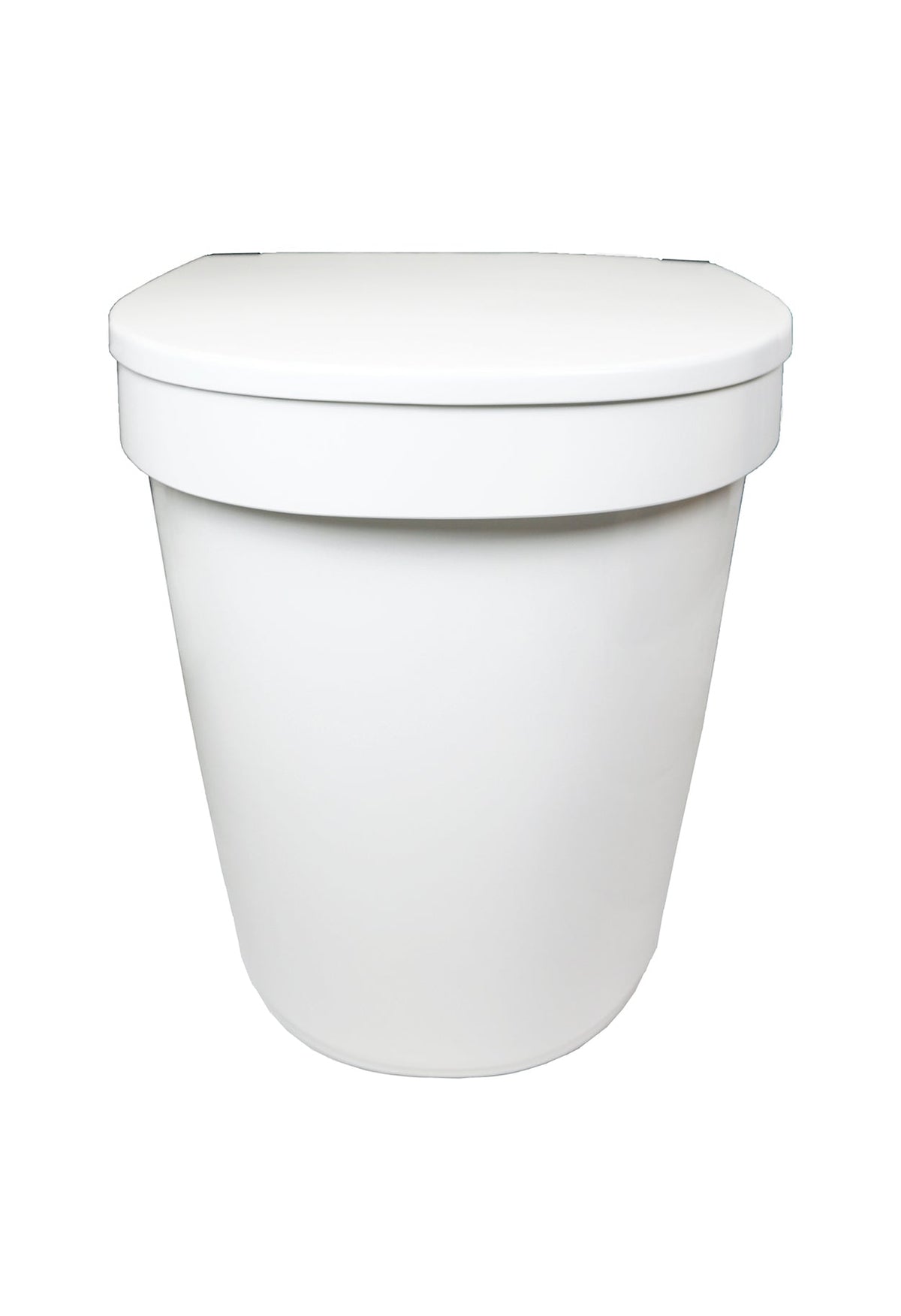

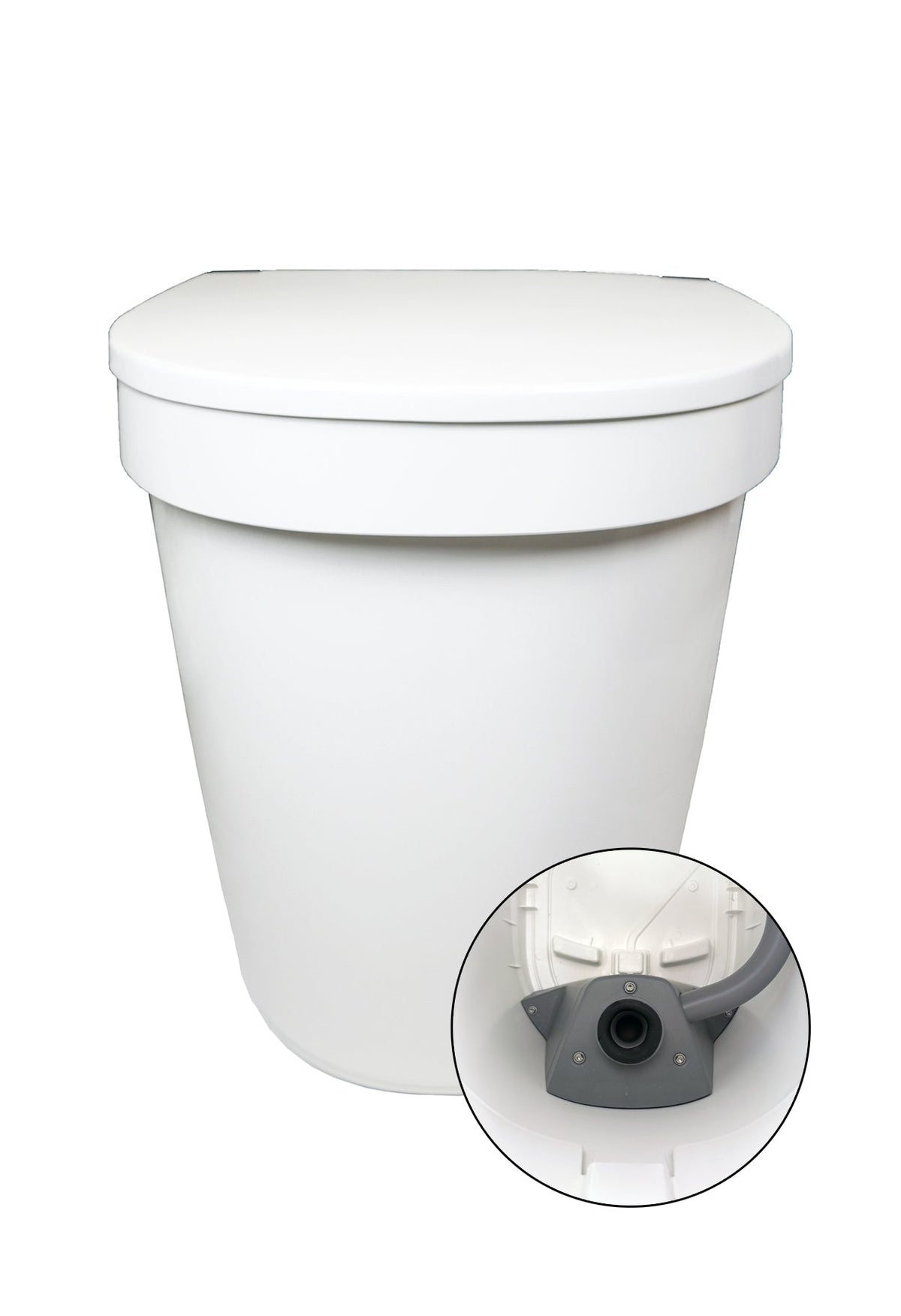

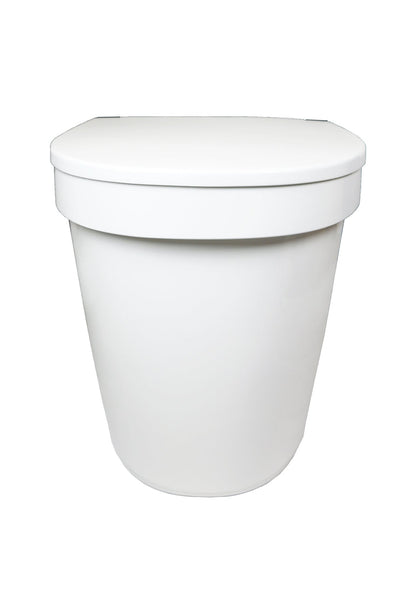

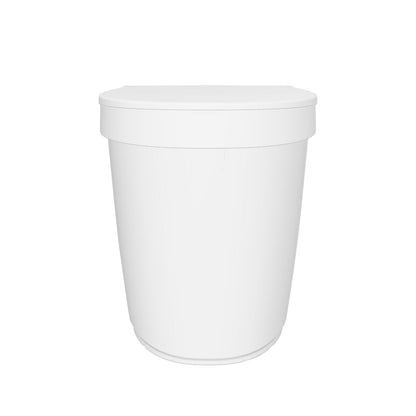

Urine-Diverting Toilet Separett Tiny with Urine Tube

Expandable capacity for urine

Thanks to urine separation the smell is significantly reduced. What comes out is exhaust air from the ⌀50 mm ventilation pipe and urine drom the ⌀32 mm pipe. When used by 2 people, the solids container needs emptying once a week and the handling of urine depends on the selected method of collection or disposal. The container for solids comes with a lid which can be used to seal the container. For those traveling for days in between waste disposal sites it's recommended to use multiple containers which can be sealed and stored before emptying. Extra containers are available as accessories.

Hygienic and odorless

Separett Tiny® has high operational reliability and is easy to install. The fan ventilates the possibly remaining odor that is left after urine separation. The constantly running fan also contributes to a better indoor climate by keeping the air in the space in motion. The fan is efficient and quiet.

Convenient

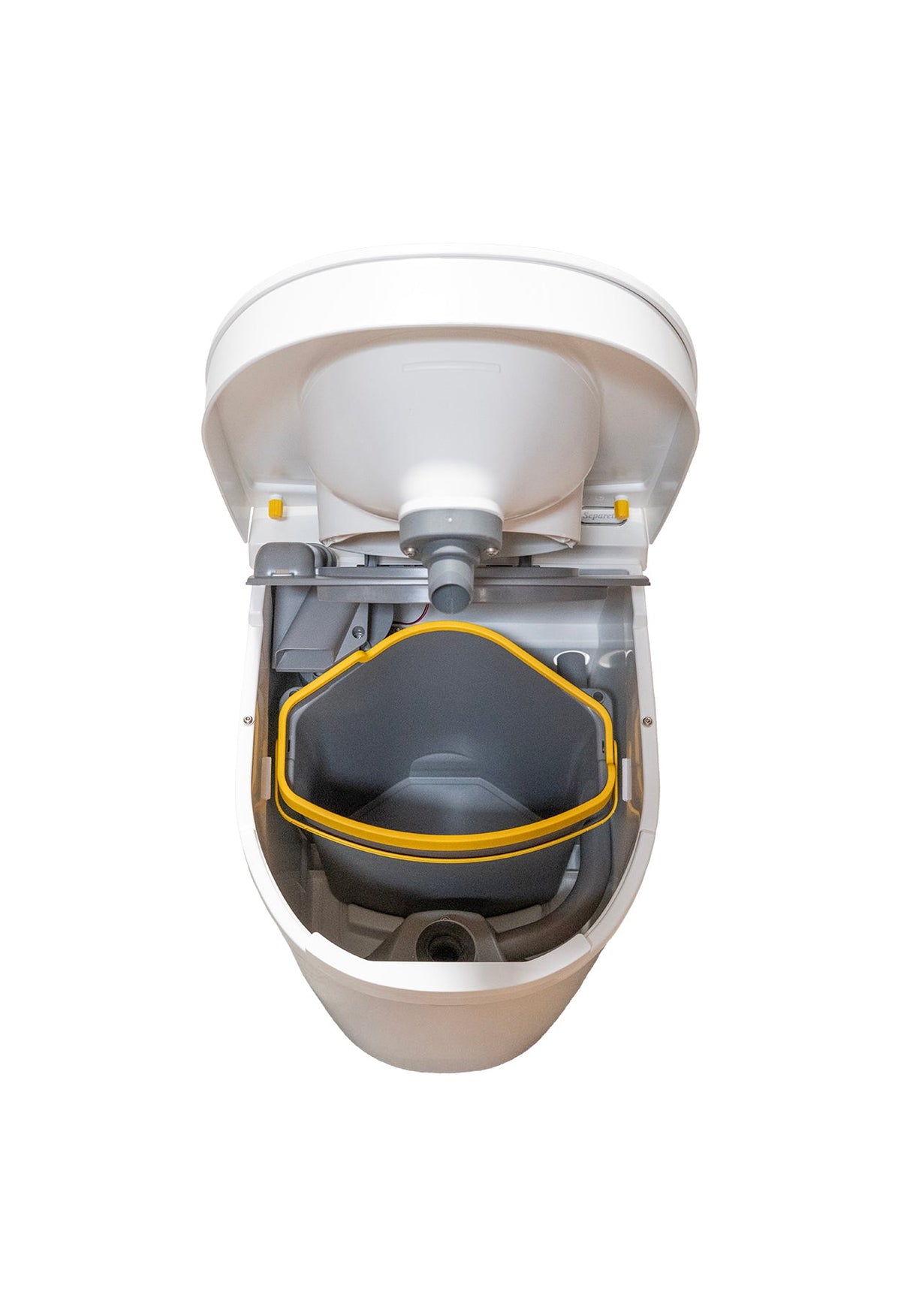

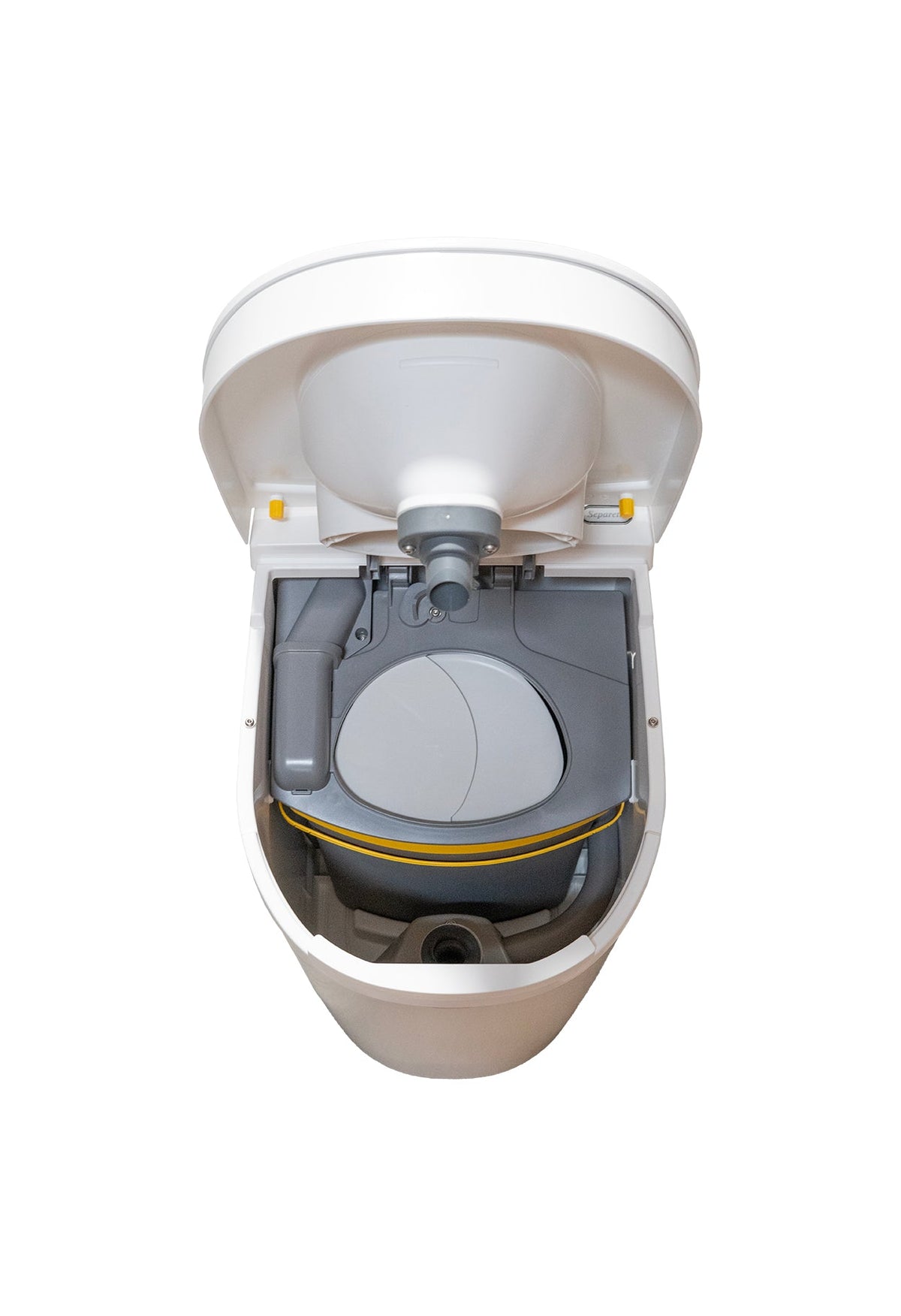

The view screens covers the solid waste container and the flaps open automatically when you sit down to use the toilet. This means that you never see the toilet waste except when it is time to empty.

5 year warranty

Waterless compost Separett Tiny® is covered by a five-year warranty.

• Separett Tiny with urine tube
• User manual
• Installation manual
• Installation template
• Mains adapter 110–240 V → 12 V
• Battery cables for 12 V DC use
• Inner container with lid, for solid waste, 1 pc
• Holder for Biotablet
• Internal urine pipe Ø32 mm with base
• Urine pipe 2 m, Ø32 mm
• Straight connector pipe Ø32 mm
• 90-degree connector pipe Ø32 mm
• Indoor flashing Ø32 mm
• 2 x wall mounts for urine pipe
• Pipe for wall penetration, 40 cm, Ø50 mm
• Pipe adapter Ø50 mm / Ø1.5” sch 40
• Ventilation pipe end with insect net, for horizontal installation Ø50 mm
• Ventilation pipe cap
• Insect net for ventilation duct
• Mounting screws for wall or floor mounting
• Sample – Bio bag for Tiny toilet
• Sample – Biotablet for urine bowl
• Sample – Absorb moisture remover

Toilet placement

Separett Tiny has no requirements for room temperature and works in both cold and warm spaces. The only requirements are that you must be able to lead the urine away and fit a ventilation pipe.

The toilet is made to be placed on the floor against the wall, and for extra stability it should be attached either to the floor, the wall or both.

Drill holes according to installation template

The installation instructions show possible installation options for urine drain and ventilation pipe through the wall, the ceiling or the floor. The installation template shows the places for holes in most common installations. These options enable an installation without visible pipes.

Install ventilation pipe

The toilet is designed for ventilation with a diameter of Ø50 mm. For optimal function it is recommended that you use Separett’s installation kit that has pipes and connectors in the correct dimensions. Separett Tiny can be installed with up to 5 m of ventilation piping and two 90-degree bends. Ventilated air can go through a wall, floor or ceiling, for example, up into an attic and out through a suitable side of the house. If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to that duct, provided that it is not smaller than 5 mm and that it meets the piping requirements. Should you need longer piping that exceeds the recommendations above, you may install an extra fan (article number 13008).

Install urine hose

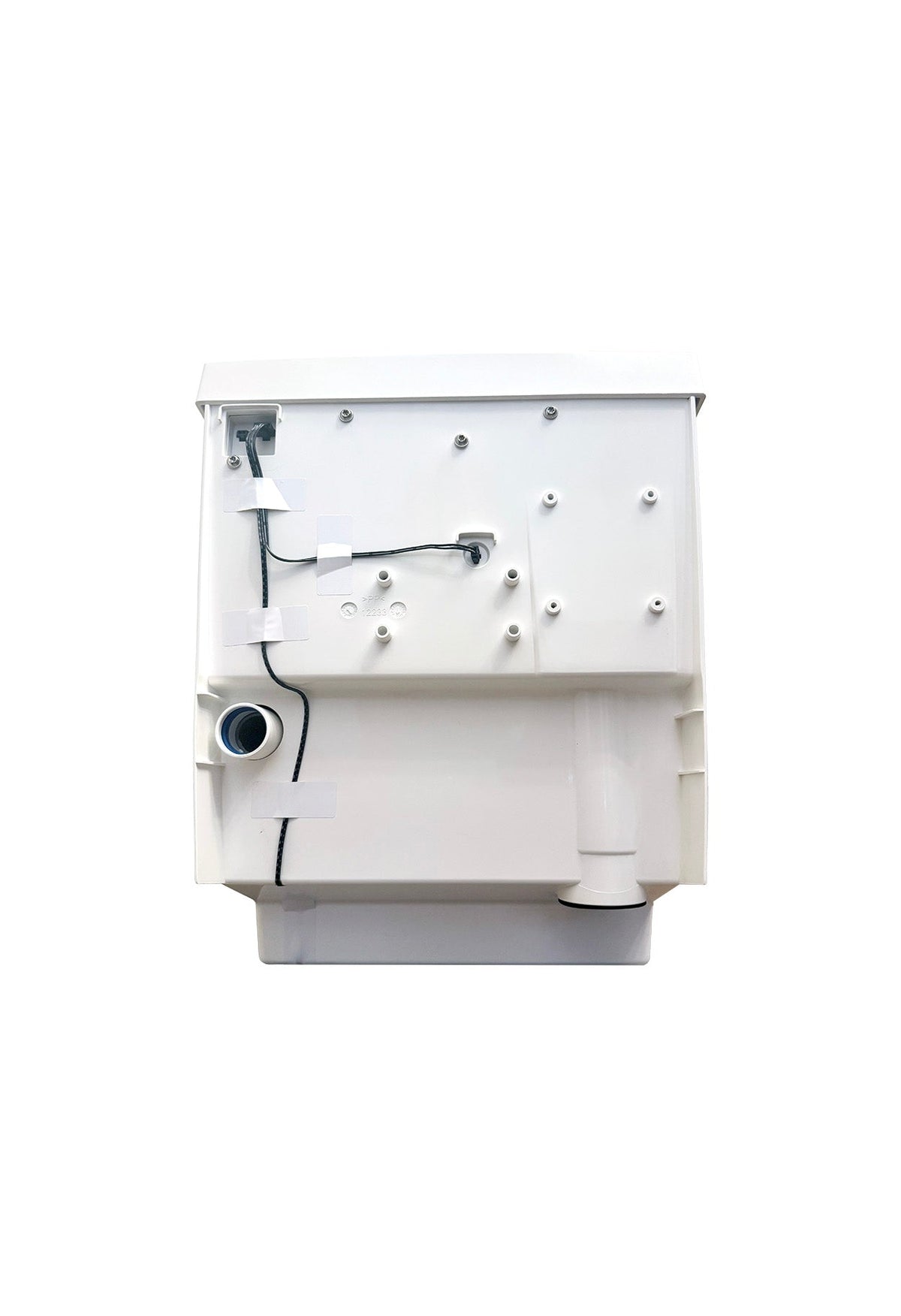

The toilet is delivered with a 2 m urine hose. To connect this to the toilet, use the included straight joint or the 90-degree elbow. Like the installation of the ventilation pipes, it is possible to connect the urine tube so that no pipe is visible where the toilet is installed. This is achieved by angling the 90-degree elbow downwards or using the straight connection leading the pipe out through the wall behind the toilet.

Recommendations for installation of urine hose

As with the ventilation duct, Tiny provides the option of installing the urine hose without any visible pipes/tubes in the bathroom. Below are a few tips that should be followed to maintain a well-functioning urine outlet over time and all year round.

If you are going to go through an insulated wall or a wall with an air gap between the inner and outer wall, you must use a pipe for the penetration, or lead the hose through a pipe. Pipes are used to reduce the risk of pests causing damage to the tube.

• If you are going to run the urine a longer distance than the 2 m of the supplied hose, you should switch to a pipe after the 2 m. Since urine contains minerals that can accumulate in pipes/ hoses, we recommend that the subsequent pipe have an internal diameter of at least 50 mm to avoid blockages.
• Make sure that you always have a downward inclination of at around 2 degrees (2 cm per 1 m) throughout the piping, also make sure that there are no air pockets created by bends in the hose.
• If the toilet is to be used in winter, outdoor pipes must have a diameter of at least 50 mm.
• If the toilet is to be used in winter, we recommend that you insulate outdoor pipes with pipe insulation. This insulation can be bought in most DIY stores.
• An important rule for longer installations over 2 m is that the sooner you switch to pipes with a larger diameter, the lower the risk of blockages in the pipes.
• Do not place pipe joints near electrical appliances or wall sockets. This is to prevent liquid from coming into contact with electricity in the event of a leak

Many people dispose of toilet waste the same way they would dispose of diapers, but it’s also possible to compost it into nutrient-rich compost.

Keep in mind that the waste is not composted when you empty the bucket. Human waste should be composted for at least 6 months, preferably 12 months, to ensure pathogens are eliminated. Mixing garden waste, kitchen scraps, and toilet waste helps speed up the process and improve the result. A good rule of thumb is to plan for at least 110 liters per user, using two containers so one can rest while the other is in use.

Always use a sealed bin or a container with a collection tray to prevent leaching. Make sure it has a solid lid and secured ventilation grates to keep out rodents, insects, and rain.

Read more about how urine-diverting toilets work

No need for bulking material

Separett toilets remain odorless thanks to an efficient ventilation fan, without the need to add bulking material or stir the contents. In fact, adding bulking material to the solids container can cause it to fill up faster and may even damage the fan, as fine dust particles can be drawn into the ventilation system.

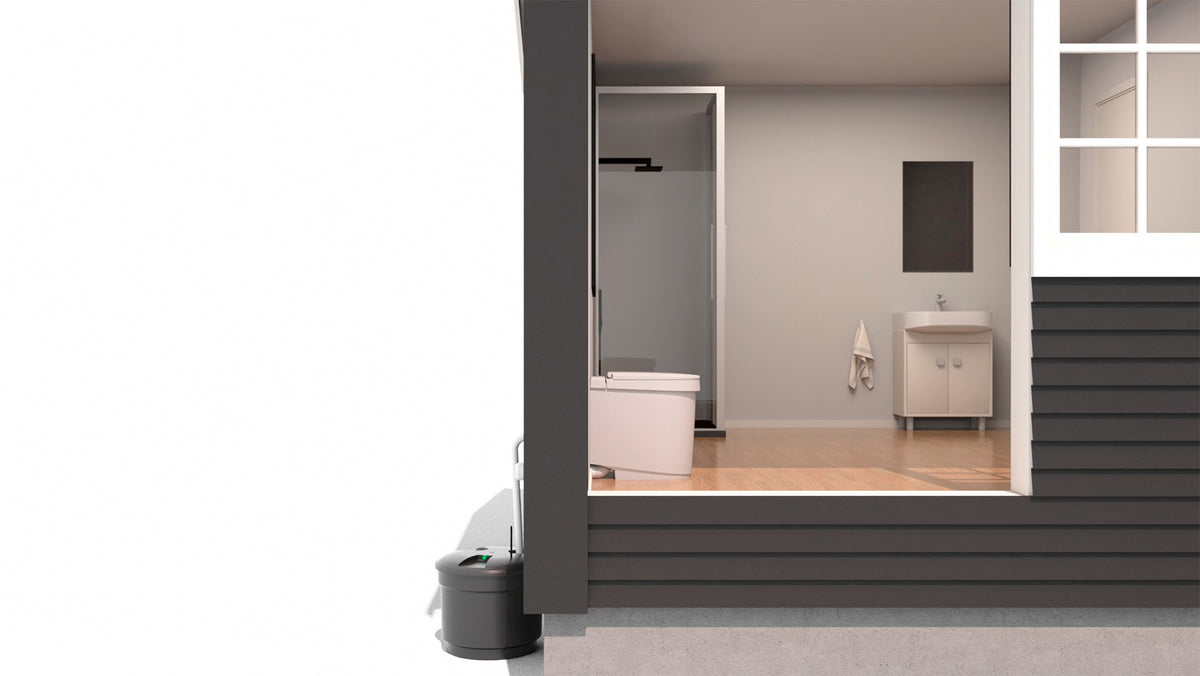

Many users connect the urine outlet from Separett Tiny to a greywater system, an Ecovault Infiltration Chamber, or a sealed container such as the Separett Ejectortank for reuse or disposal.

The Ecovault Infiltration Chamber is a purpose-built solution for managing urine and light greywater on-site. Unlike simple gravel soakaways, the chamber provides a defined structure that maintains void space over time, while the non-woven geotextile fabric prevents surrounding soil from migrating into the system. This helps maintain infiltration performance and extends the functional lifespan compared to pits that rely solely on loose gravel, where materials can gradually mix and reduce drainage capacity.

Alternatively, urine can be collected in a sealed container like the Separett Ejectortank and reused as a fertilizer. The Ejectortank uses water pressure to automatically dilute urine at a ratio of approximately 1:8 during emptying, ensuring a consistent mixture without manual handling. This diluted solution can be applied to lawns, shrubs, and ornamental plants, returning nutrients such as nitrogen, phosphorus, and potassium back into the soil. Regular use can contribute to visibly greener grass and supports a more circular use of nutrients.

If storing urine, use a closed container and empty it regularly to minimize odor. The Ejectortank includes a float indicator to signal when it is time for emptying and can be installed underground with only the lid visible for convenient access.

A simple soakaway can be used where permitted, but performance depends heavily on soil conditions and construction quality. Over time, soil and fine particles may migrate into the gravel, reducing porosity and infiltration capacity. For more consistent, long-term performance, a structured infiltration system with proper separation layers is recommended.

Always follow local regulations when handling greywater or reusing urine.

• Capacity: unlimited – empty as needed
• Product weight: 8.5 kg
• Package weight: 12 kg
• Maximum user weight: 150 kg
• Product dimensions: L 49.7 cm × W 39.8 cm × H 47 cm
• Seat height: 44-46 cm
• Seat width: 39 cm
• Seat depth: 40 cm
• Package dimensions: L 58 cm × W 45 cm × H 59 cm
• Material: polypropylene (PP), high gloss, recyclable
• Emptying interval for 2 users, urine: when the container is full, if used
• Inner container capacity for solid waste: 10 liters
• Emptying interval for 2 users, solid waste: once a week
• Energy consumption: 0.04 kWh / 24 h
• Power supply: universal mains adapter 110–230 V
• Total power: 12 V / 1.6 W / 133 mA
• Operating voltage: 12 V
• Ventilation pipe: Ø50 mm
• Urine pipe: Ø32 mm
• Noise level during use: below 30 dB(A)
