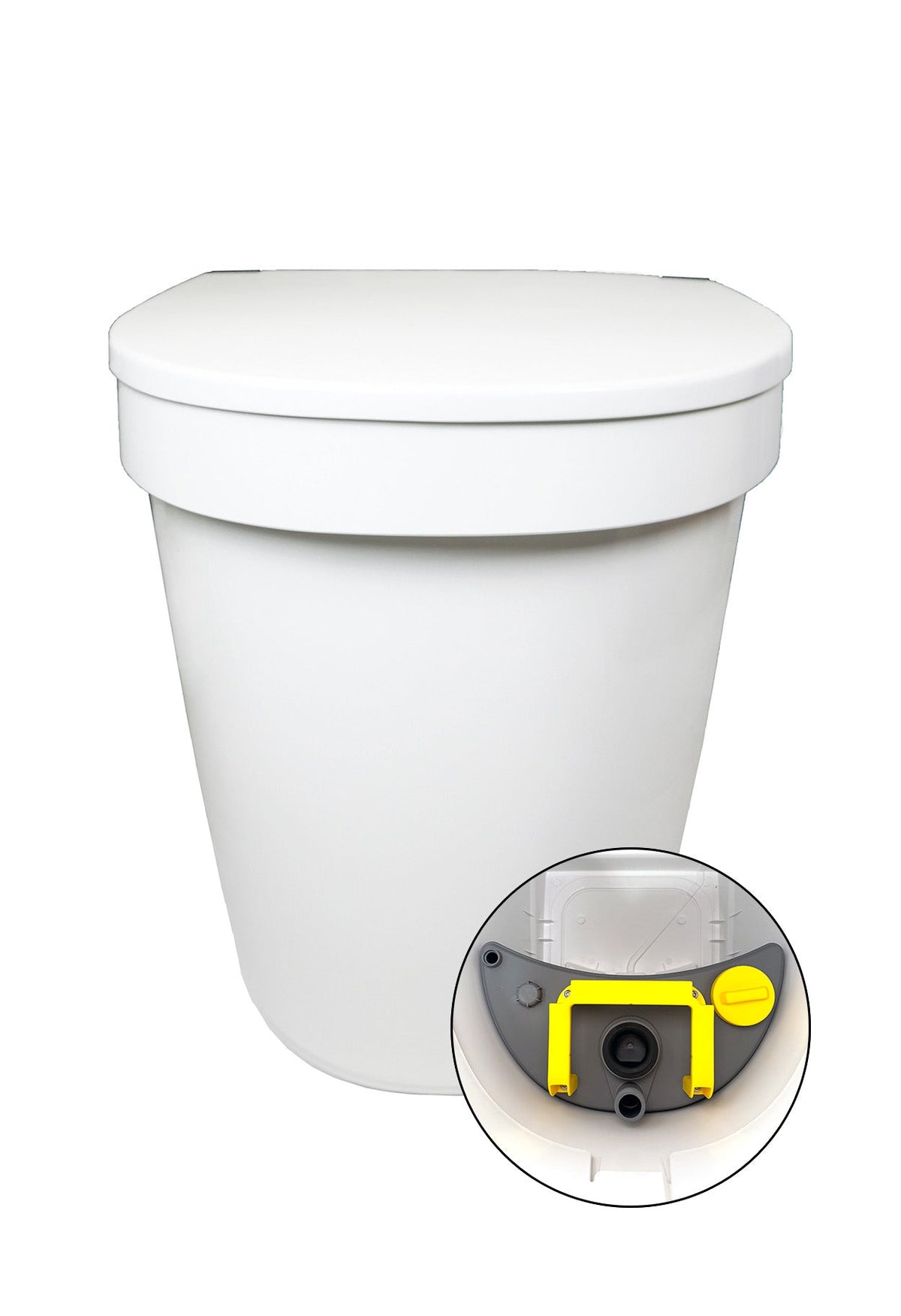

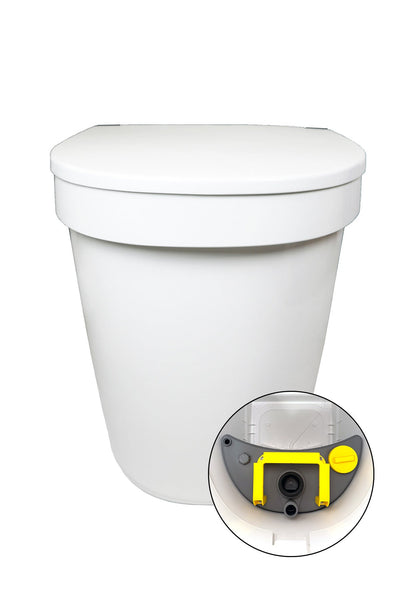

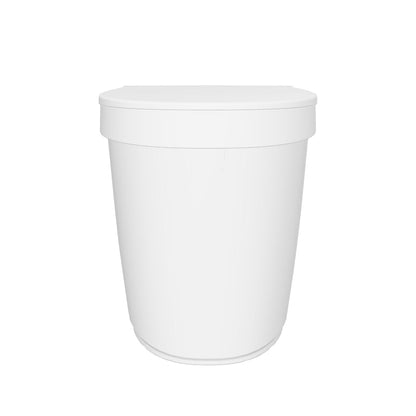

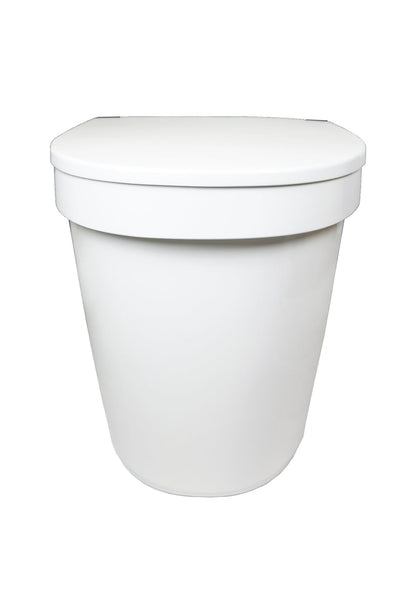

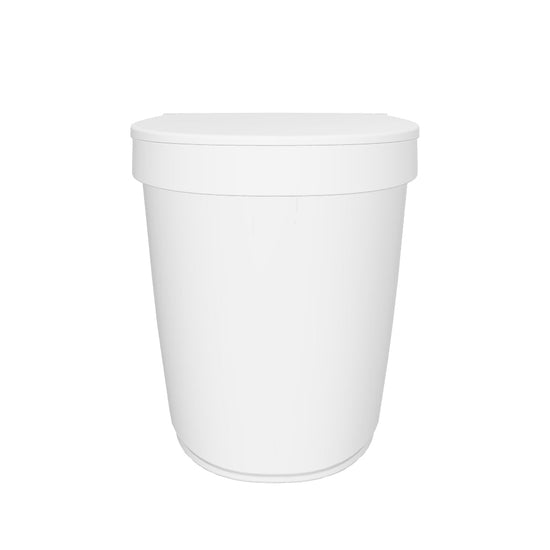

Urine-Diverting Toilet Separett Tiny with Urine Container

Easy to empty and to extend the capacity

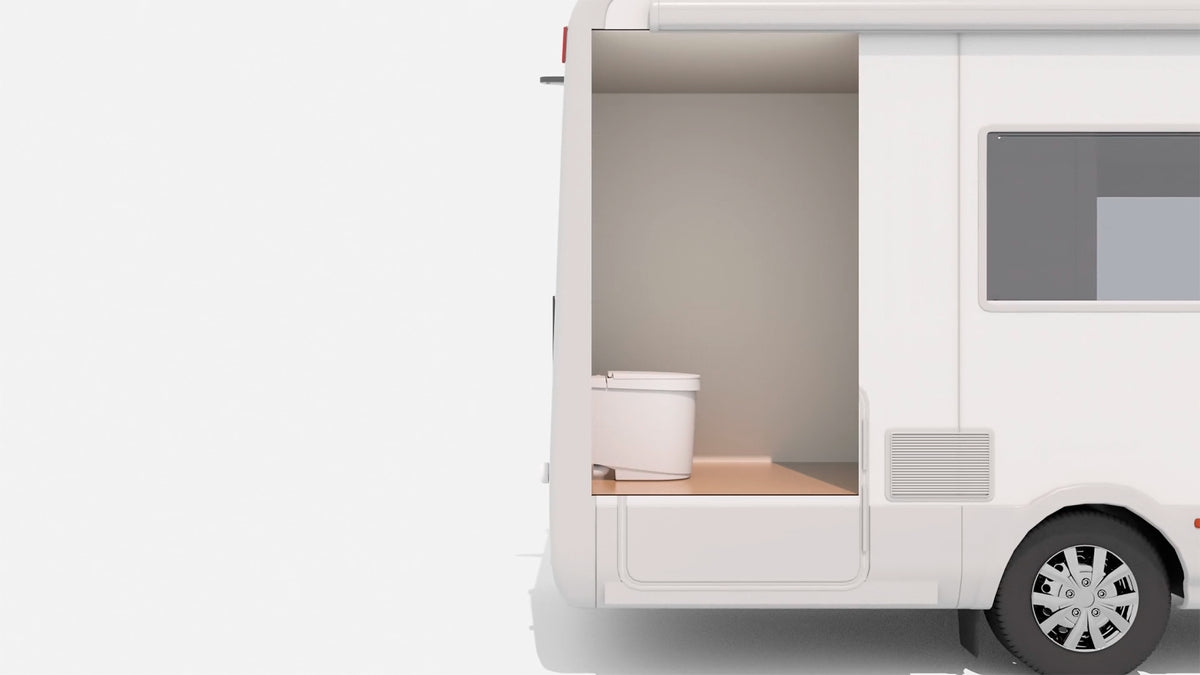

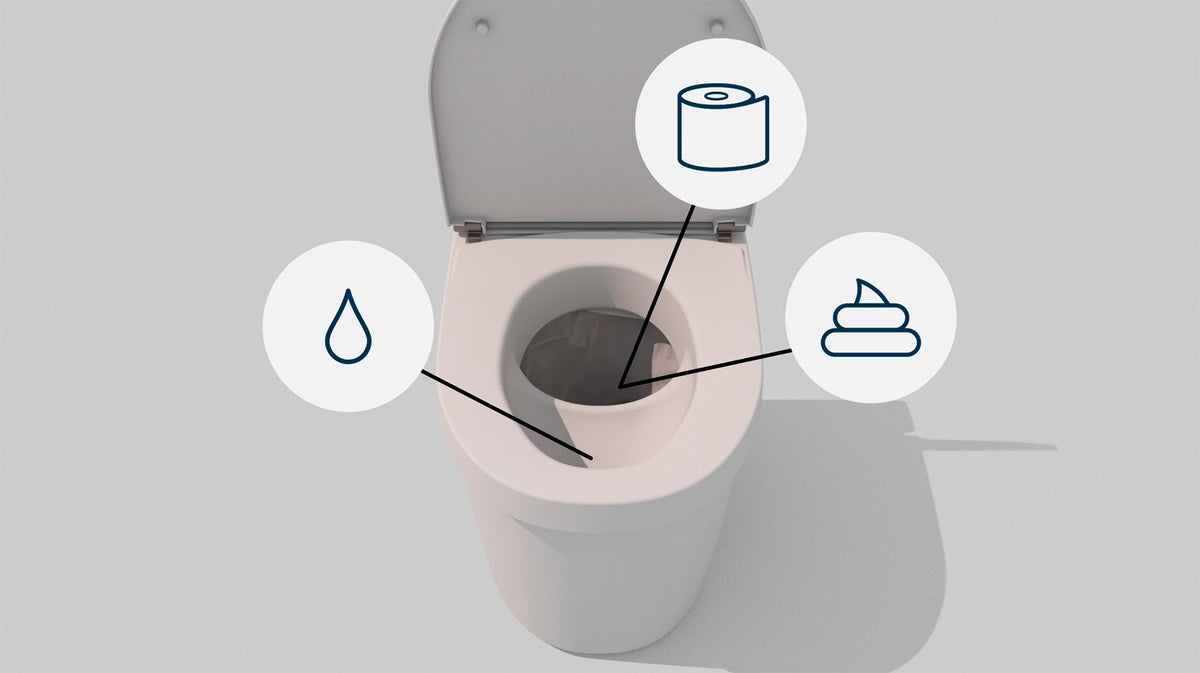

Thanks to urine separation the smell is significantly reduced. What comes out is exhaust air from the 50 mm ventilation pipe. When used by 2 people, the solids container needs emptying once a week. With two users the urine container needs emptying about every other day. Both the container for solids and liquids come with lids or caps which can be used to seal the containers. For boaters or people traveling for days in between waste disposal sites it's recommended to use multiple containers which can be sealed and stored before emptying. Extra containers are available as accessories.

Hygienic and odorless

Separett Tiny® has high operational reliability and is easy to install. The fan ventilates the possibly remaining odor that is left after urine separation. The constantly running fan also contributes to a better indoor climate by keeping the air in the space in motion. The fan is efficient and quiet.

Convenient

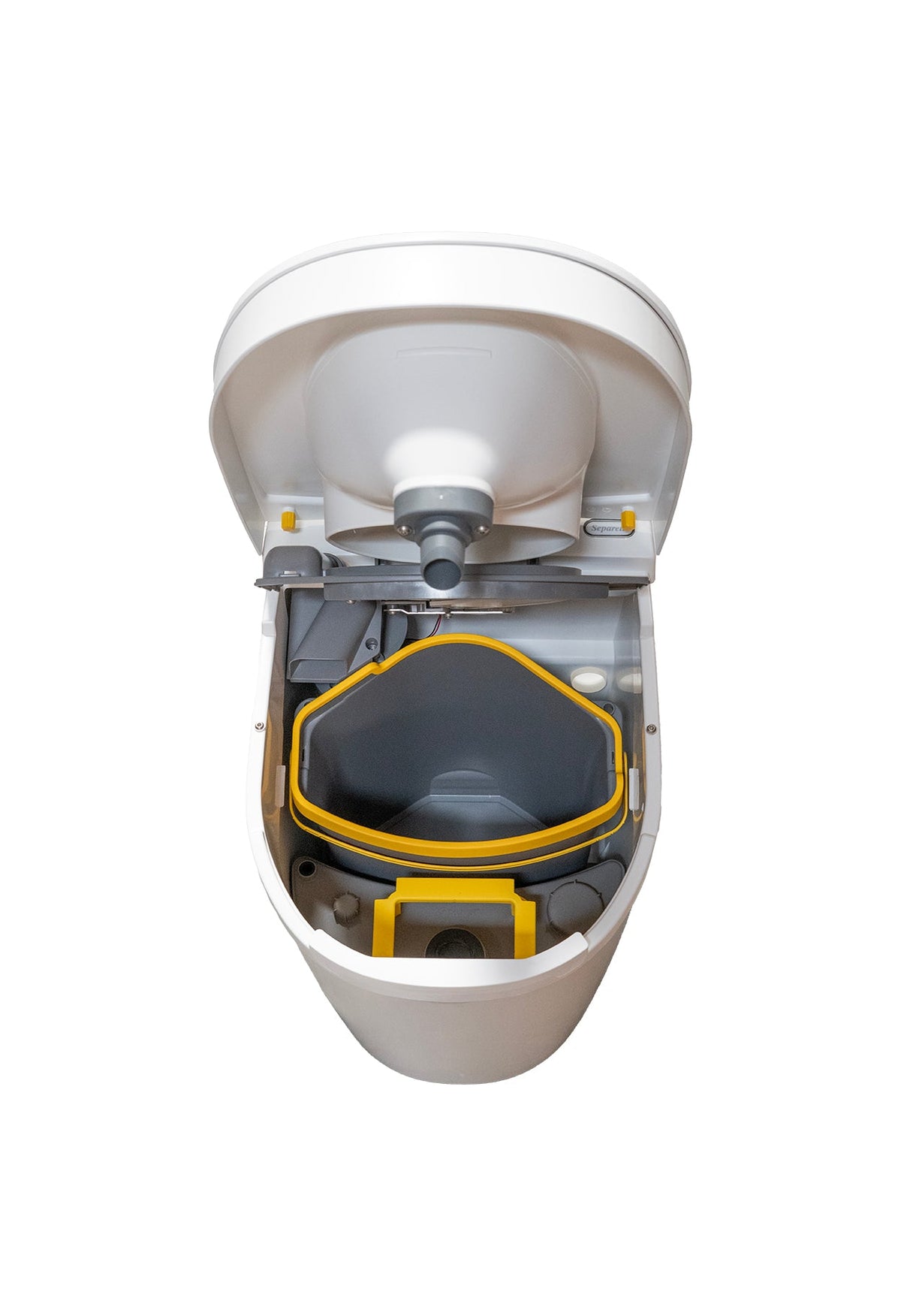

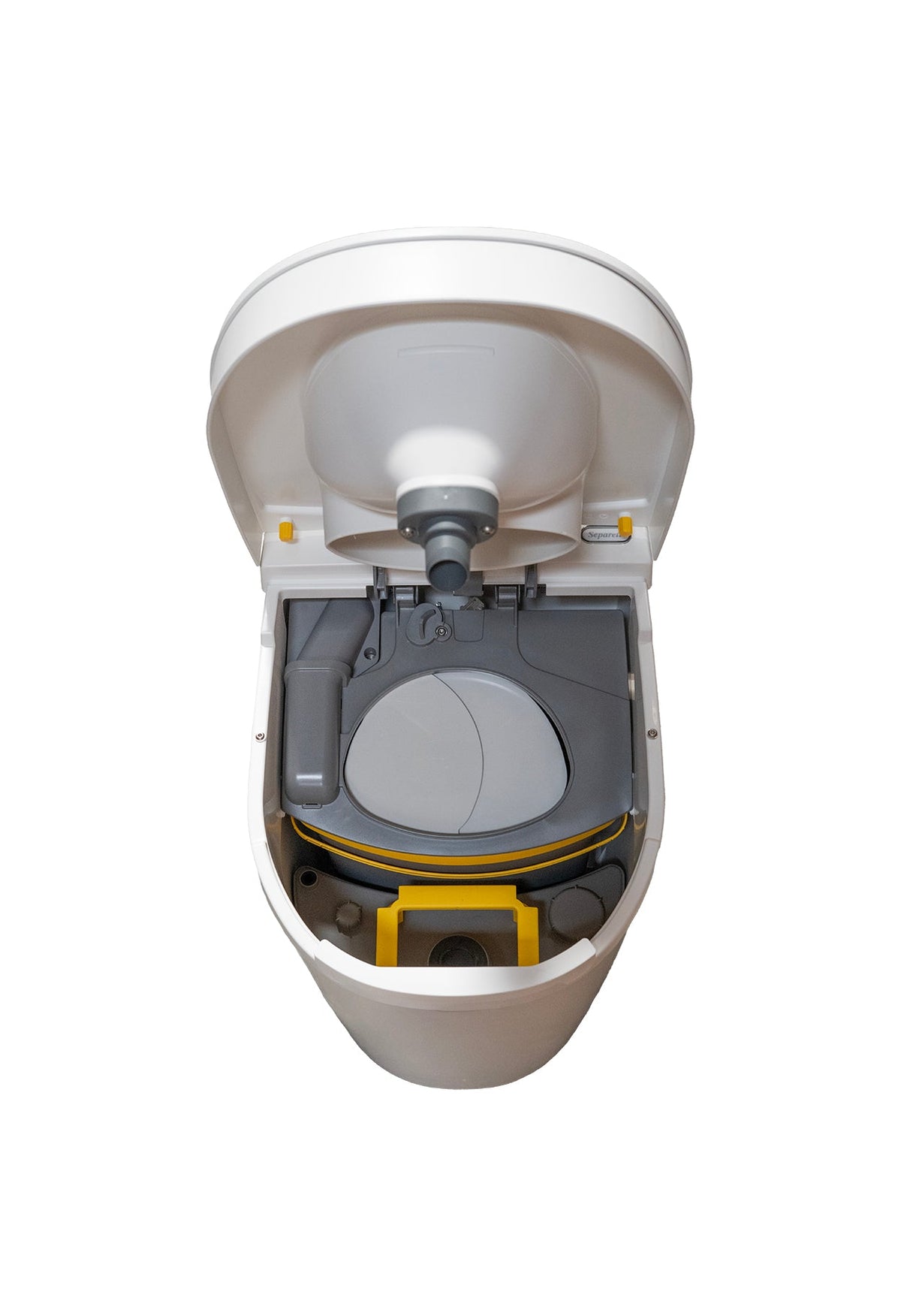

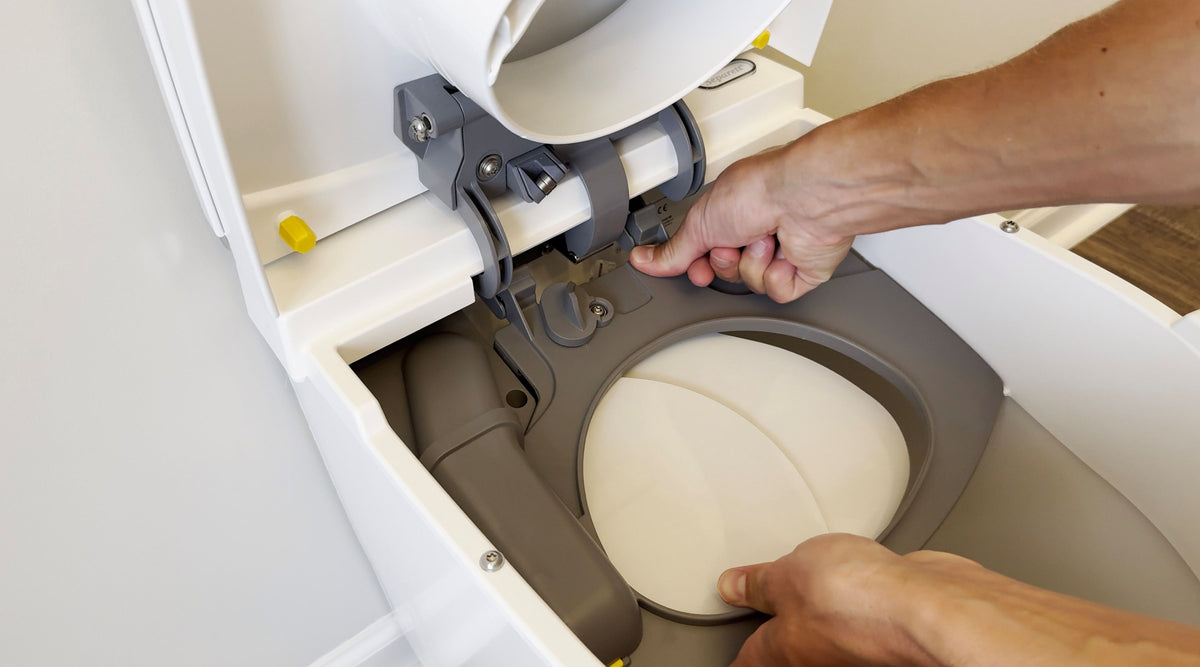

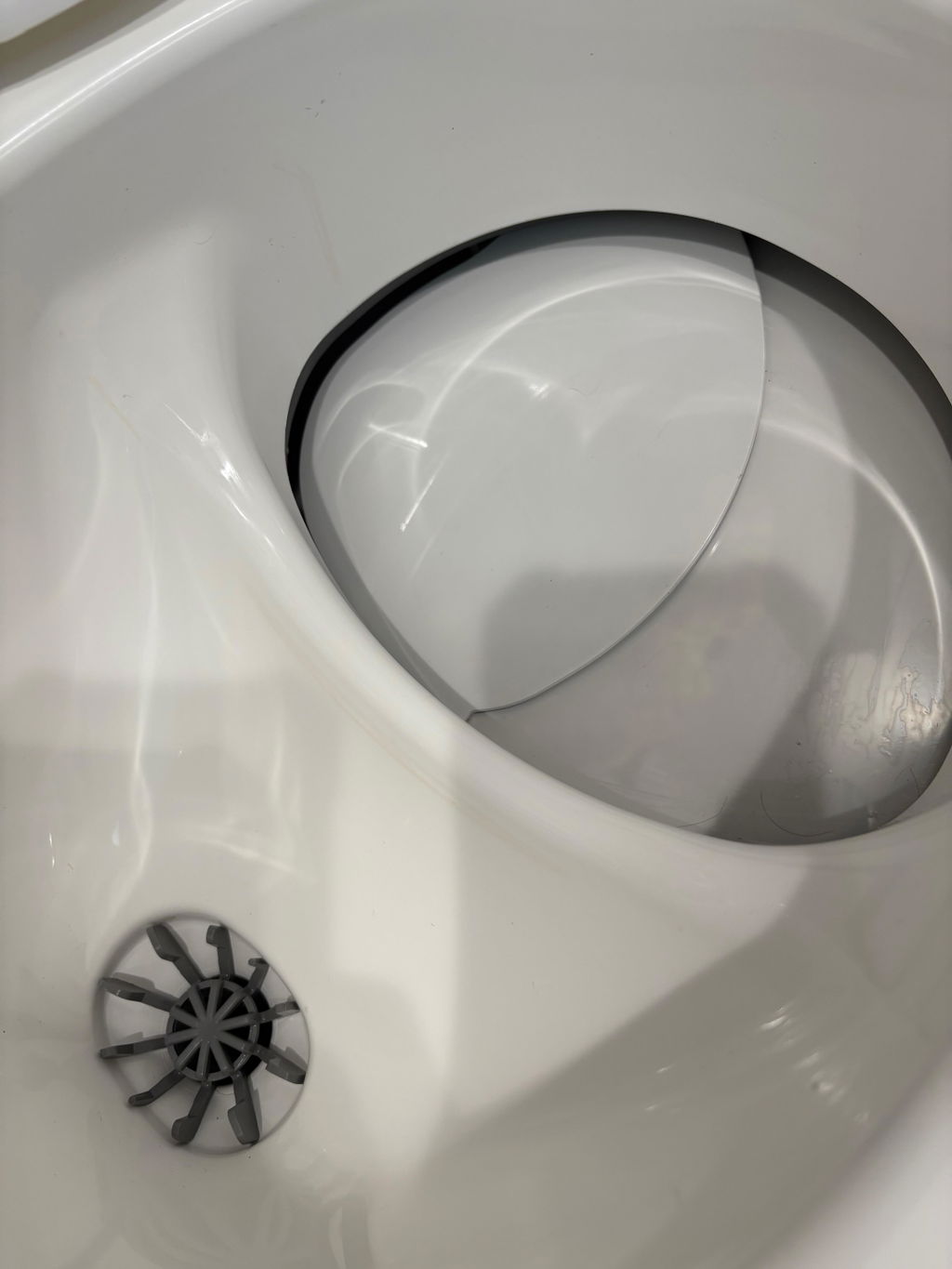

The view screens covers the solid waste container and the flaps open automatically when you sit down to use the toilet. This means that you never see the toilet waste except when it is time to empty.

5 year warranty

Waterless compost Separett Tiny® is covered by a five-year warranty.

• Tiny urine-diverting dry toilet with urine container
• Installation template
• Installation manual
• User manual
• Mains adapter for 110–230 V use
• Battery cables for 12 V DC use
• Inner container for solid waste, 14.5 l, polypropylene
• Lid for inner container
• Inner container for liquid waste, approx. 7.5 l, polypropylene
• Urine bowl extension piece, splash guard
• Holder for Biotablet
• 90° first elbow pipe Ø50 mm
• 40 cm pipe for wall installation Ø50 mm
• Pipe adapter Ø50 mm / Ø1.5” sch 40
• Ventilation pipe end for horizontal installation, 50 mm
• Tiny ventilation pipe cap
• Fixing screw for ventilation pipe cap
• Insect net for ventilation duct
• 3 x mounting screws for wall or floor mounting
• Sample of Biotablet for urine bowl
• Sample of Bio bag for Tiny toilet
• Sample of Absorb moisture remover

Toilet placement

Separett Tiny has no requirements for room temperature and works in both cold and warm spaces. The only requirements are that you must be able to fit a ventilation pipe.

The toilet is made to be placed on the floor against the wall, and for extra stability it should be attached either to the floor, the wall or both.

Drill holes according to installation template

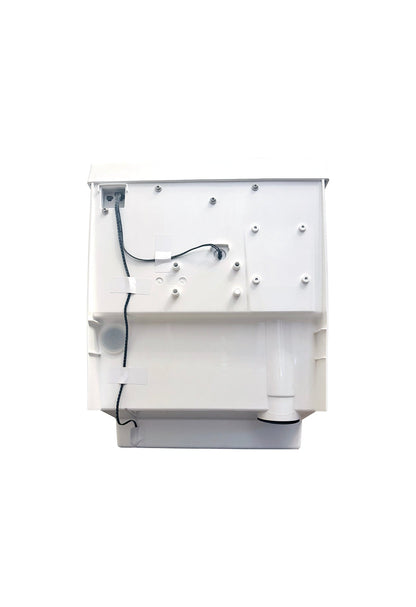

The installation instructions show possible installation options for urine drain and ventilation pipe through the wall, the ceiling or the floor. The installation template shows the places for holes in most common installations. These options enable an installation without visible pipes.

Install ventilation pipe

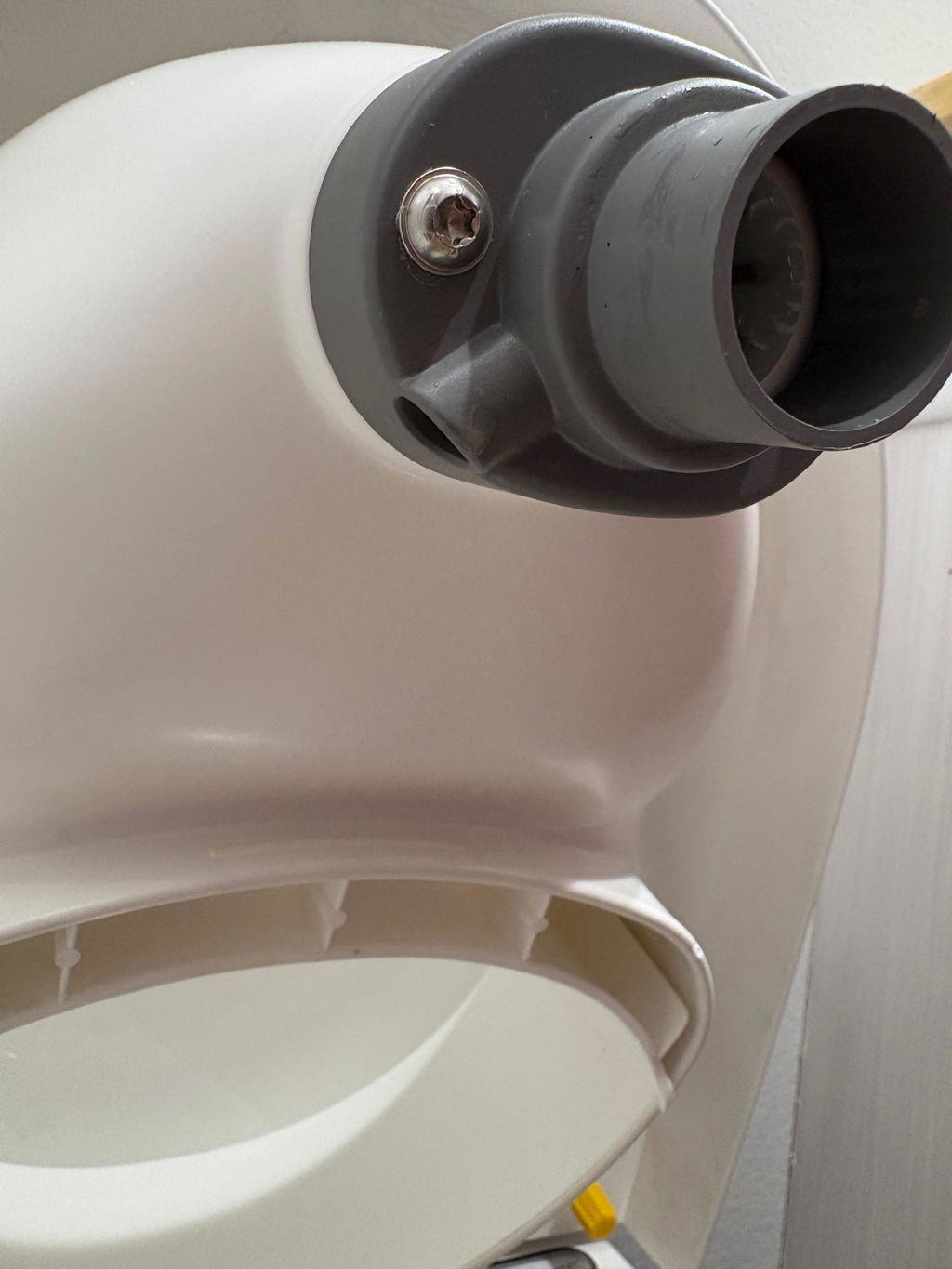

The toilet is designed for 50 mm schedule 20 or schedule 40 PVC pipes. For optimal function it is recommended that you use Separett’s installation kit that has pipes and connectors in the correct dimensions. Separett Tiny can be installed with up to 5 m of ventilation piping and two 90-degree bends. Ventilated air can go through a wall, floor or ceiling, for example, up into an attic and out through a suitable side of the house. If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to that duct, provided that it is not smaller than 50 mm (schedule 20 or schedule 40 PVC) and that it meets the piping requirements. Should you need longer piping that exceeds the recommendations above, you may install an extra fan (article number 13008).

The toilet comes with a coupling for connecting the toilet to 50 mm schedule 20 or schedule 40 PVC pipes.

Many people dispose of toilet waste the same way they would dispose of diapers, but it’s also possible to compost it into nutrient-rich compost.

Keep in mind that the waste is not composted when you empty the bucket. Human waste should be composted for at least 6 months, preferably 12 months, to ensure pathogens are eliminated. Mixing garden waste, kitchen scraps, and toilet waste helps speed up the process and improve the result. A good rule of thumb is to plan for at least 110 liters per user, using two containers so one can rest while the other is in use.

Always use a sealed bin or a container with a collection tray to prevent leaching. Make sure it has a solid lid and secured ventilation grates to keep out rodents, insects, and rain.

Read more about how urine-diverting toilets work

No need for bulking material

Separett toilets remain odorless thanks to an efficient ventilation fan, without the need to add bulking material or stir the contents. In fact, adding bulking material to the solids container can cause it to fill up faster and may even damage the fan, as fine dust particles can be drawn into the ventilation system.

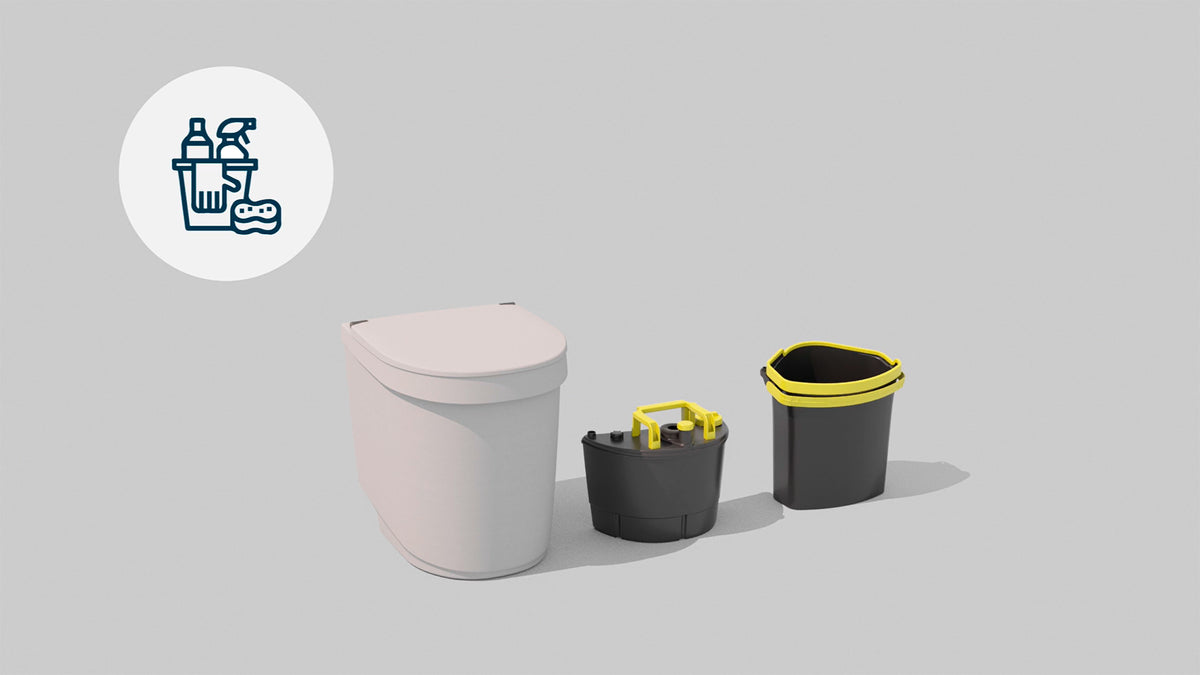

The integrated urine container is easy to remove and carry, allowing for convenient and flexible waste handling. Most users empty the container into a standard toilet, a designated greywater system, or an appropriate outdoor disposal site in accordance with local regulations.

To maintain hygiene and prevent odors, it's important to rinse the container with water after each emptying. Additionally, we recommend rinsing the container once every two weeks with a 50/50 water and vinegar mix to help break down residue and eliminate any lingering smells.

If you're stationary and wish to dispose of it outdoors, always follow local waste management and greywater guidelines to ensure safe and responsible disposal.

• Capacity: Unlimited - depends on the number of users
• Product weight: 8.5 kg
• Package weight: 12 kg

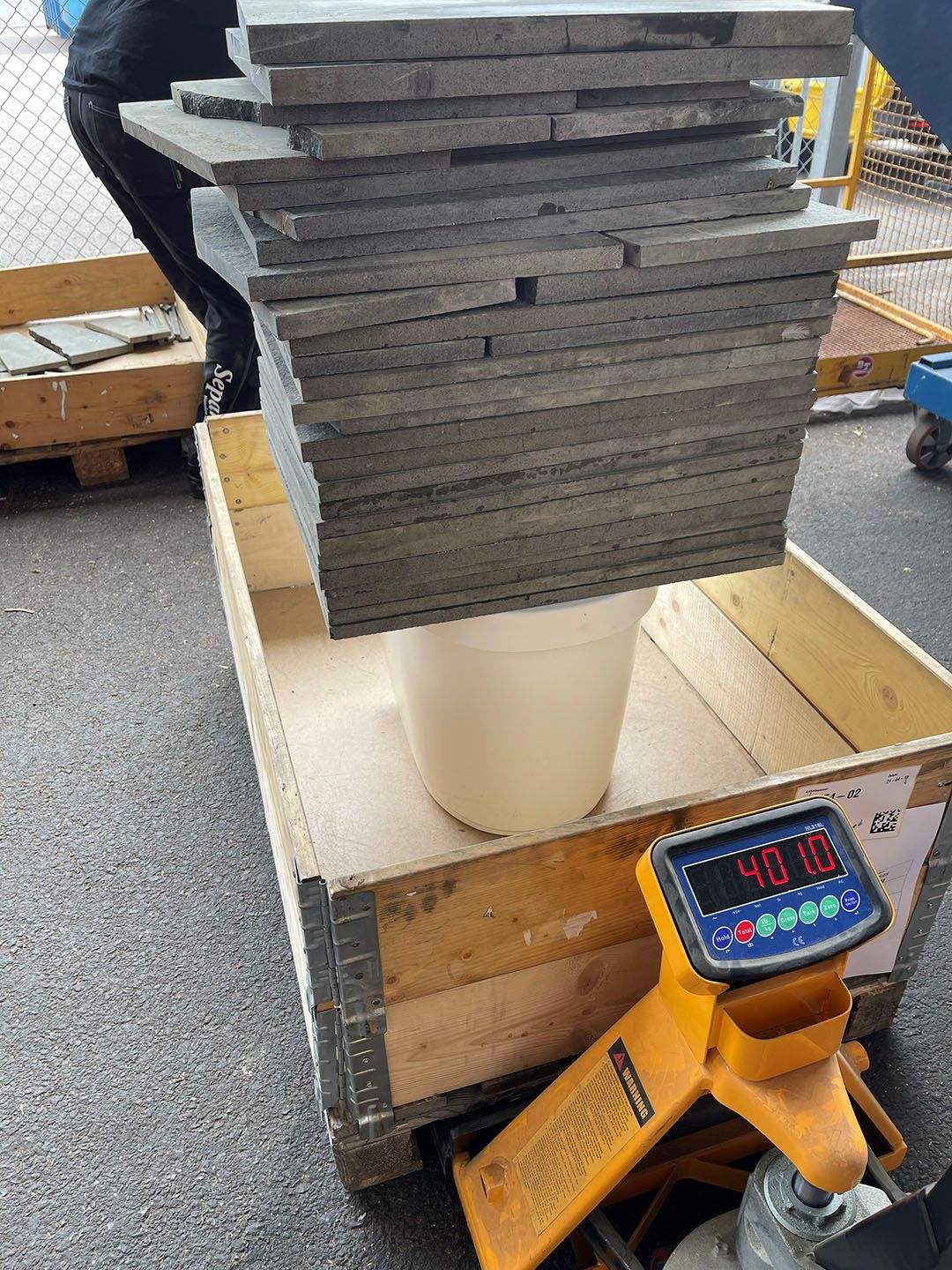

• Max user weight: 150 kg
• Product measurements: L 49.7 cm W 39.8 cm H 47 cm
• Seat height: 44-46cm
• Seat width: 39.1 cm
• Seat depth: 39.9 cm
• Box size: L 58 cm W 45 cm H 59cm
• Material: Polypropylene (PP), high gloss, recyclable
• Inner container volume (liquids): 7.5 liter
• Emptying interval with 2 users (liquids): Every other day
• Inner container volume (solids): 14.5 liter
• Emptying interval with 2 users (solids): once a week
• Energy consumption: 0.04 kWh / 24 h
• Power adapter: 110-230 V universal adapter
• Total effect: 12 V / 1.6 W / 133 mA
• Voltage: 12 V
• Ventilation duct: ⌀50 mm schedule 20 or 40 PVC pipes
• Noise level in use: Under 30 dB(A)
